รายละเอียดเพิ่มเติม
ข้อมูลทางเทคนิค / Technical Data Sheets
– Fluke 114 Electrical Multimeter Data Sheet
– Fluke 114, 115, and 117 True-rms Multimeters Users Manual
รายละเอียดสินค้า / Product Details

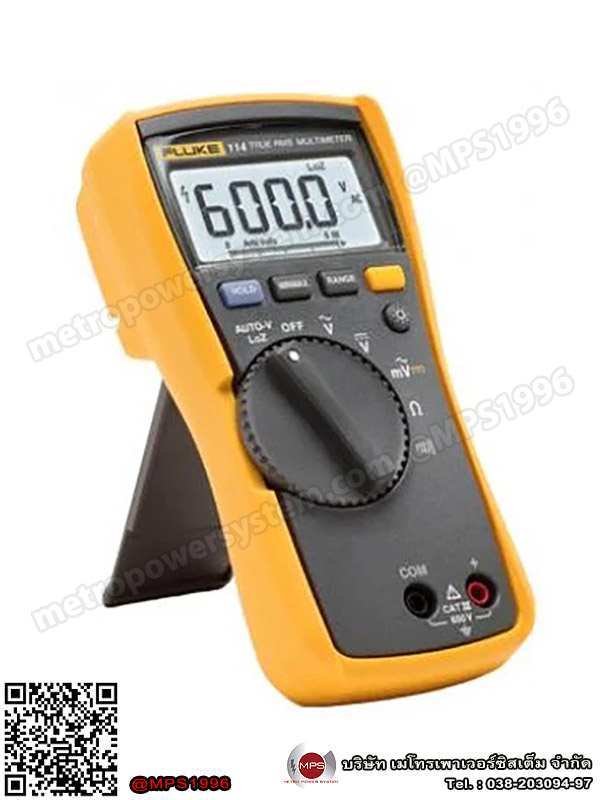

Fluke 114 Digital Multimeter
The compact Fluke 114 multimeter is a CAT III 600 V safety rated True RMS meter for electrical troubleshooting, giving you results without the complications. It is designed for easy one-hand operation and go/no go testing for use by professional electricians in both commercial and residential applications. Its AutoVolt capability automatically switches to measure AC or DC voltage, whichever is present. The LoZ function helps identify so-called ghost voltage and prevents false readings and improve accuracy when testing on irregular waveforms. The Fluke 114 displays True RMS voltage and current readings with 6000-count resolution, and tests continuity and resistance. A large white LED backlight aids work in poorly lit areas. An easy-open battery access door makes battery changes easy.
What are the key benefits of the Fluke 114 Digital Multimeter?
• True RMS digital multimeter, ideal for electrician and tradesmen
• It has a 6000 count resolution
• LCD display with a large white LED backlight and analogue bargraph
• An integrated tilt stand with a removable holster
• Min/Max/Average records signal fluctuations over a period of time
• Prompts when battery levels are low
• Resistance and continuity testing capability with a beeper integrated sound
• CAT III 600 V safety rated
• AutoVolt feature that detects AC or DC voltage
Additional Specifications
• DC Voltage Accuracy: 0.5% + 2
• DC Voltage Lowest Resolution: 0.1mV
• AC Voltage Accuracy: 2.0% + 3
• AC Voltage Lowest Resolution: 0.1mV
• AC Voltage Max Frequency: 1kHz
• Display Count 6000
• Display Update 4/sec
• Bar Graph Segments 33
• Bar Graph Update 32/sec

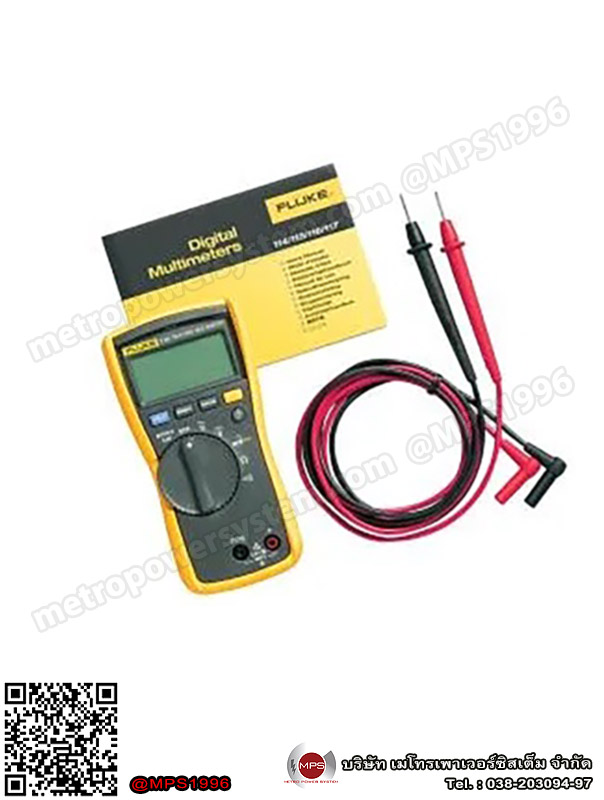

What is included?
• Fluke 114 Digital Multimeter
• Test lead set
• Holster
• 9v battery already installed
• User manual
Does the Fluke 114 Digital Multimeter come with any warranty?
You have peace of mind as the Fluke 114 Digital Multimeter is backed by 3 years of warranty from the manufacturer.
Note
For Calibrated Articles – Please note that accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, with relative humidity at 0 % to 95 %.
True RMS Large white LED backlight Min/Max/Average to record signal fluctuations Resistance and continuity testing capability
คุณสมบัติ / Specifications
| คุณสมบัติ | Value |
| Multimeter Type | Handheld |
| Absolute Maximum AC Voltage Measurement | 600V ac |
| Absolute Maximum Resistance Measurement | 40MΩ |
| Absolute Maximum DC Voltage Measurement | 600V dc |
| Functions Measured | AC Voltage, Continuity, DC Voltage, Resistance |
| True RMS | Yes |
| Maximum Frequency | 1kHz |
| Display Type | LCD |
| Model Number | 114 |
| Resistance Measurement Resolution | 100mΩ |
| DC Voltage Measurement Resolution | 0.1mV dc |
| AC Voltage Measurement Resolution | 0.1mV ac |
| Best Resistance Measurement Accuracy | ±1.5% + 2 Digits |
| Safety Category Voltage | 600V |
| Length | 46mm |
| Dimensions | 46 x 84 x 167mm |
| Battery Life | 400 h |
| Width | 84mm |
| Battery Type | 9V |
| Safety Category Level | CAT III |
| Maximum Operating Temperature | +50°C |
| Best AC Voltage Accuracy | ±1% + 3 Digits |
| Weight | 550g |
| Height | 167mm |
| Minimum Operating Temperature | -10°C |
| Best DC Voltage Accuracy | ±0.5% + 2 Digits |
